表盘设置功能

15.1功能概述

表盘功能主要有获取手表屏幕信息功能,获取表盘列表信息功能,设置当前表盘信息功能,传输表盘文件。

15.2 表盘操作属性

参数 说明 备注
filePath 表盘文件传输路径 str
colorFormat 颜色格式 int 设备屏幕信息接口获取
blockSize 压缩块大小 int 设备屏幕信息接口获取

15.3 获取屏幕信息

  • IDOWatchScreenInfoModel
参数 说明 备注
familyName 表盘家族名称 str
width 宽度 int
height 高度 int
colorFormat 颜色格式 int
size 尺寸 * 100 int
- 获取当前设备屏幕信息 Objc: ```objc initWatchDialManager().getDialScreenInfo(^(IDOWatchScreenInfoModel * _Nullable model, int errorCode) { if (errorCode == 0) { //获取屏幕信息成功 }else if (errorCode == 6) { //不支持此功能 }else { //获取屏幕信息失败 } }); ``` Swift: ```swift initWatchDialManager().getDialListInfo!{(model,errorCode)in if errorCode == 0{ //获取屏幕信息成功 }else if errorCode == 6 { //不支持此功能 }else { //获取屏幕信息失败 } }; ``` ### 15.4 获取V2表盘列表 * IDOWatchDialInfoItemModel
参数 说明 备注
fileName 表盘名称 str(唯一标示)
operate 操作 0x00:查询正在使用表盘 0x01:设置表盘 0x02:删除表盘
  • IDOWatchDialInfoModel
参数 说明 备注
fileCount 文件个数 int
remainingSpace 剩余空间 int
fileMaxSize 单个文件最大size int
currentDialName 当前设置的表盘名称 str
dialArray 当前手环所有表盘信息集合 array
* 获取v2所有表盘信息 Objc: ```objc initWatchDialManager().getDialListInfo(^(IDOWatchScreenInfoModel * _Nullable model, int errorCode) { if (errorCode == 0) { //获取表盘信息成功 }else if (errorCode == 6) { //不支持此功能 }else { //获取表盘信息失败 } }); ``` Swift: ```swift initWatchDialManager().getDialListInfo!{(model,errorCode)in if errorCode == 0{ //获取屏幕信息成功 }else if errorCode == 6 { //不支持此功能 }else { //获取屏幕信息失败 } }; ``` * 获取v2当前表盘名字 Objc: ```objc initWatchDialManager().getCurrentDialInfo(^(NSString * _Nullable fileName, int errorCode) { if (errorCode == 0) { //获取当前表盘信息成功 }else if (errorCode == 6) { //不支持此功能 }else { //获取当前表盘信息失败 } }); ``` Swift: ```swift initWatchDialManager().getCurrentDialInfo!{(name,errorCode)in if errorCode == 0{ //获取当前表盘信息成功 }else if errorCode == 6 { //不支持此功能 }else { //获取当前表盘信息失败 } }; ``` ### 15.5 v2设置当前表盘 - IDOWatchDialInfoItemModel
参数 说明 备注
fileName 表盘名称 str(唯一标示)
operate 操作 0x00:查询正在使用表盘 0x01:设置表盘 0x02:删除表盘

Objc:

IDOWatchDialInfoItemModel * model = [[IDOWatchDialInfoItemModel alloc]init];
initWatchDialManager().setCurrentDial(^(int errorCode) {
     if (errorCode == 0) {
        //设置当前表盘成功
     }else if (errorCode == 6) {
        //不支持此功能
     }else {
        //设置当前表盘失败
     }
  }, model);

Swift:

let model = IDOWatchDialInfoItemModel.init()
initWatchDialManager().setCurrentDial!{(errorCode)in
  if errorCode == 0{
      //设置当前表盘成功
  }else if errorCode == 6 {
     //不支持此功能
  }else {
      //设置当前表盘失败
  }
}(model)

15.6 获取V3表盘列表

//获取v3表盘列表功能表
__IDO_FUNCTABLE__.funcTable35Model.getNewWatchList
  • IDOV3WatchDialInfoModel
参数 说明 备注
localWatchNum 本地表盘的总个数 int
cloudWatchNum 云端表盘的总个数 int
wallpaperWatchNum 壁纸表盘的总个数 int
useCloudWatchNum 云端表盘的已经使用个数 int
useWallpaperWatchNum 壁纸表盘的已经使用个数 int
currentWatchName 当前设置的表盘名称 int
watchFrameVersion 框架版本号 从1开始 int
fileMaxSize 单个文件最大 KB
watchListNum 当前手表所有表盘数量 int
watchTotalSize 表盘的总容量 单位:字节
watchUsedSize 表盘的已经使用容量 单位:字节
maxDownloadSpaceSize 最大的可用表盘下载连续空间大小 单位:字节
dialArray 当前手表所有表盘信息 IDOV3WatchDialInfoItemModel 集合
  • IDOV3WatchDialInfoItemModel
参数 说明 备注
type 表盘类型 1:普通表盘;
2:壁纸表盘;
3:云表盘
watchVersion 表盘版本号 云表盘起作用
sortNumber 表盘排列序号 int 从0开始
size 表盘文件大小 int

Objc:

initWatchDialManager().getV3WatchListInfo(^(IDOV3WatchDialInfoModel * _Nullable model, int errorCode) {
     if (errorCode == 0) {
        //获取v3表盘列表信息成功
    }else if (errorCode == 6) {
       //不支持此功能
    }else {
        //获取v3表盘列表信息失败
    }
});

Swift:

initWatchDialManager().getV3WatchListInfo!((mode,errorCode)in {
    if errorCode == 0{
        //获取v3表盘列表信息成功
    }else if errorCode == 6 {
       //不支持此功能
    }else {
        //获取v3表盘列表信息失败
    }
})

15.7 设置表盘排序

//设置表盘排序功能表
__IDO_FUNCTABLE__.funcTable34Model.watchDialSort
  • IDOV3WatchDialInfoModel
参数 说明 备注
watchListNum 当前手表所有表盘数量 int
dialArray 当前手表所有表盘信息 IDOV3WatchDialInfoItemModel 集合
  • IDOV3WatchDialInfoItemModel
参数 说明 备注
type 表盘类型 1:普通表盘;
2:壁纸表盘;
3:云表盘
watchVersion 表盘版本号 云表盘起作用
sortNumber 表盘排列序号 int 从0开始
size 表盘文件大小 int

Objc:

IDOV3WatchDialInfoModel * dialModel = [IDOV3WatchDialInfoModel currentModel];
initWatchDialManager().setWatchDialSort(^(int errorCode) {
  if (errorCode == 0) {
      //设置表盘排序成功
   }else if (errorCode == 6) {
      //不支持此功能
   }else {
      //设置表盘排序失败
   }
}, dialModel);

Swift:

initWatchDialManager().setWatchDialSort!((errorCode)in{
   if errorCode == 0 {
      //设置表盘排序成功
   }else if errorCode == 6 {
      //不支持此功能
   }else {
      //设置表盘排序失败
   }
})

15.8表盘文件传输功能

Objc:

initWatchDialManager().colorFormat = model.colorFormat;
initWatchDialManager().blockSize = model.blockSize;
initWatchDialManager().addDialProgress(^(int progress) {
    //表盘传输进度(0-100)
}).addDialTransfer(^(int errorCode,int finishingTime) {
    if (errorCode == 0) {
       //传输完成
    }else if (errorCode == 6) {
       //不支持传输
    }else {
       //传输失败
    }
}).filePath = filePath;
[IDOWatchDialManager startDialTransfer];

Swift:

initWatchDialManager().colorFormat = model.colorFormat;
initWatchDialManager().blockSize = model.blockSize;
initWatchDialManager().addDialProgress!{(progress)in
    //表盘传输进度(0-100)
}.addDialTransfer!{(errorCode,finishingTime)in
    if errorCode == 0{
       //传输完成
    }else if errorCode == 6{
       //不支持传输
    }else {
       //传输失败
    }
}.filePath = filePath;
IDOWatchDialManager.startDialTransfer();

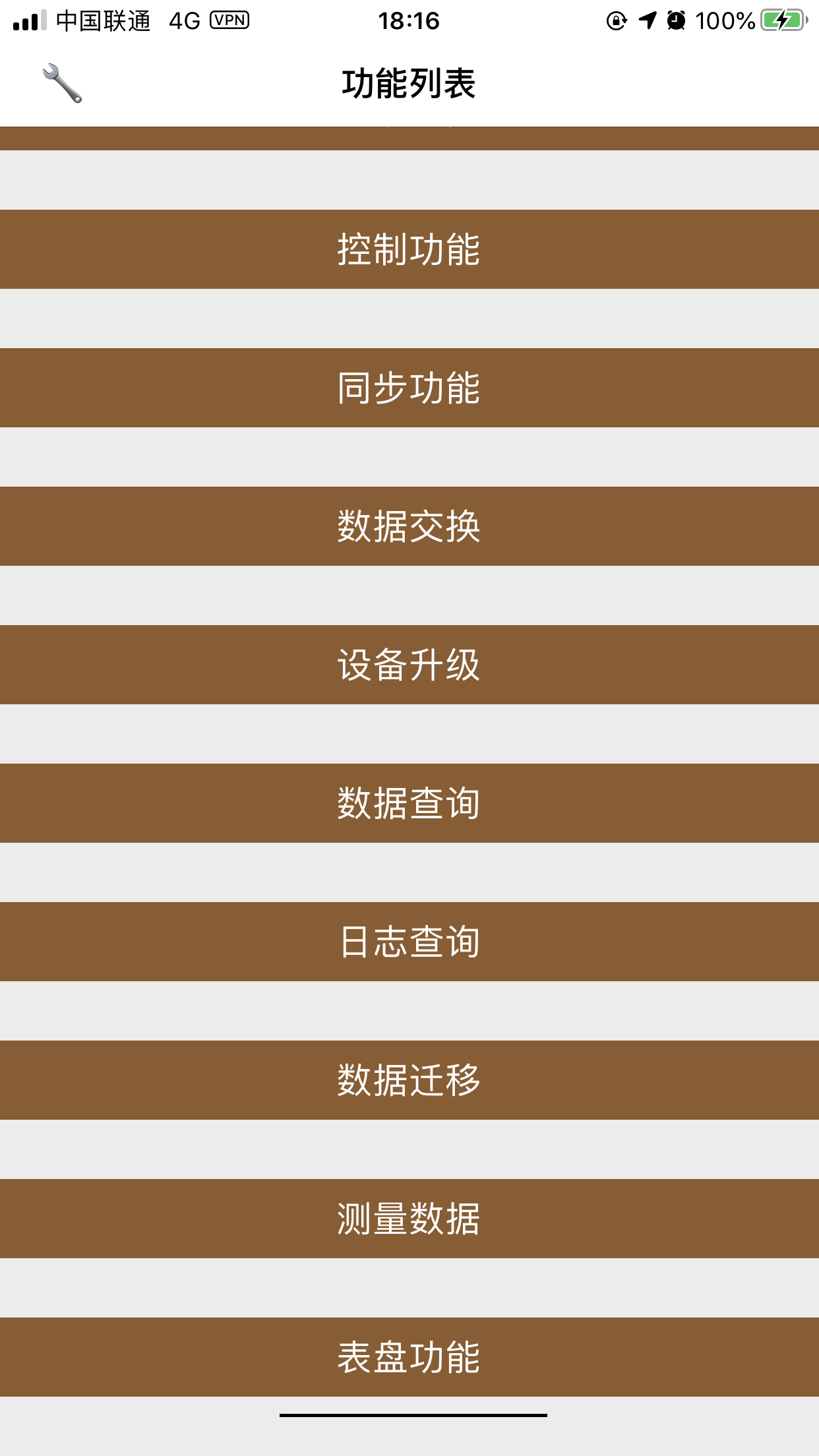

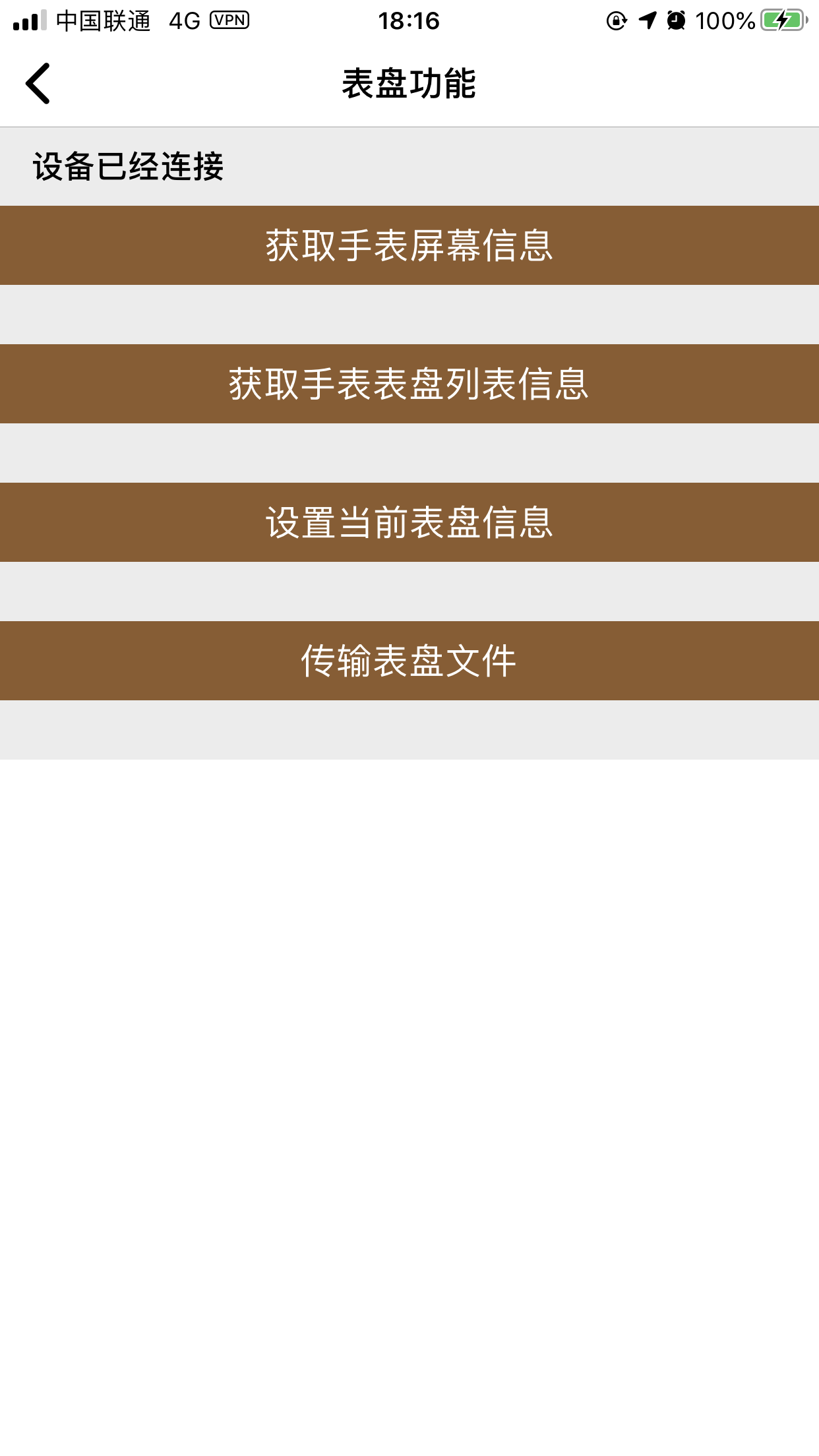

15.9 Demo表盘功能入口
